Intelligent Hydraulic & Equipment Sizing Engine
Precision Pool Equipment Sizing & Package Builder
Calculate flow dynamics (GPM), pump horsepower, heater BTUs, and filter square footage calibrated to ANSI/APSP/ICC-15 commercial turnover standards.
Hydraulic Parameters
20,000GAL
Calculated Engineering SpecsANSI Compliant
Required Flow Rate
42 GPM
Turnover Cycle
8 Hours
Hydraulic Pump Spec
1.5 HP Variable-Speed
Thermal Output
250,000 BTU
Estimated Annual Energy Savings:~$990/yr
Matched 3-Piece OEM Equipment Package
Factory authorized Pentair, Hayward, Jandy, and Raypak components matching your hydraulic specs.
Pump · 1.5 HPFluidra

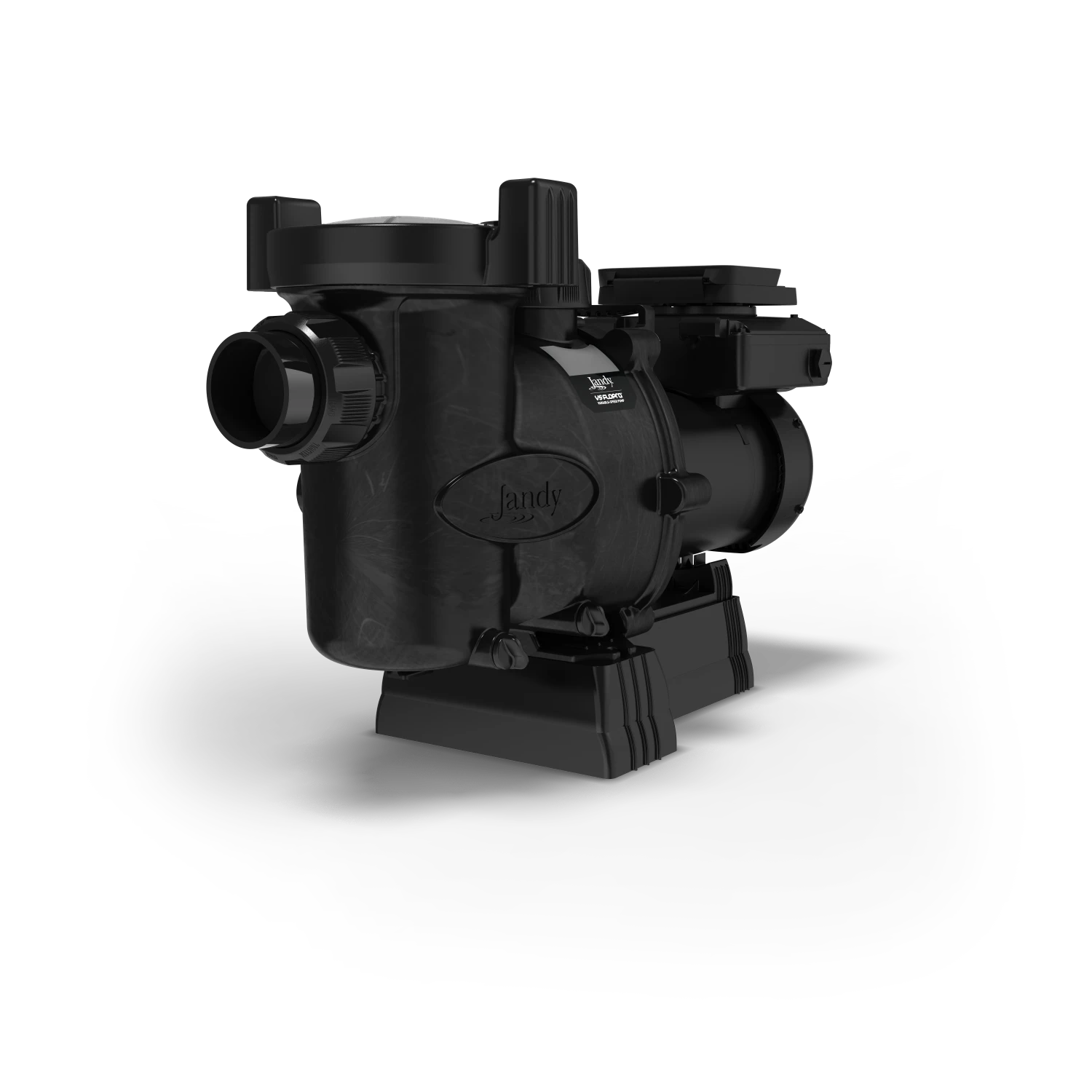

Jandy Pro Series VSFHP165AUT VS FloPro
Variable speed hydraulics calibrated for 42 GPM peak flow.
$1,251.16
Thermal · 250,000 BTUGeneric

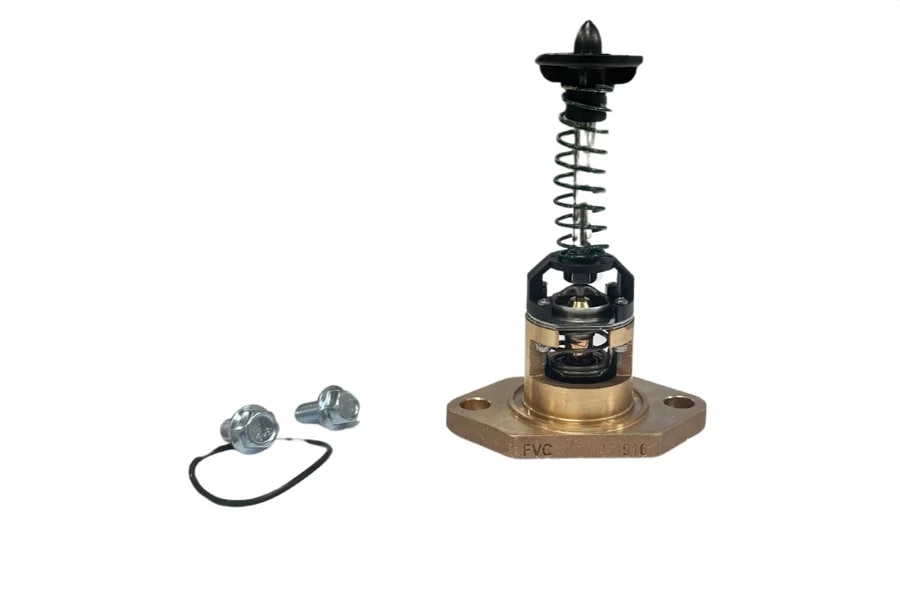

UNIVERSAL GOVENER KIT
Engineered for moderate climate temperature rise.
$230.38
Filter · 320 Sq FtHayward

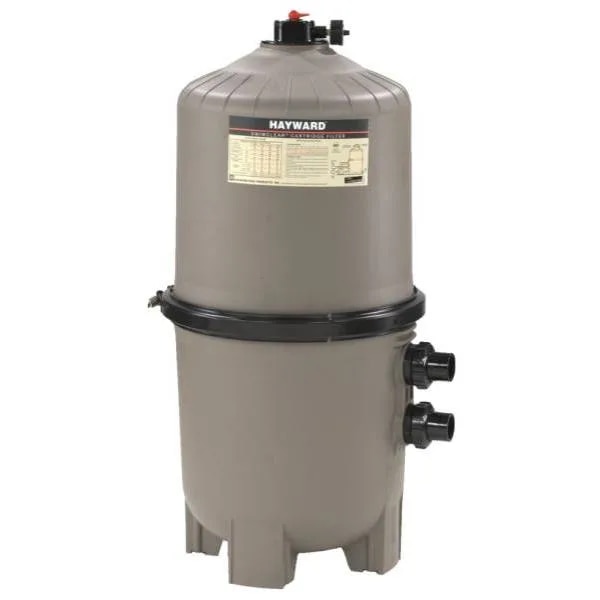

SWIMCLEAR MULTI 700 SQ FT FILTER
Multi-element media for crystal clear water purity.
$1,975.41
Complete OEM 3-Piece Package
$3,456.95
Hydraulic Standards
Engineering Calibrations & Sizing Formulas
GPM
Flow Rate Formula
GPM = Gallons ÷ (Turnover Hours × 60). Sized to maintain minimum velocity without exceeding maximum pipe friction head loss.
BTU
Thermal Output Calcs
BTU/hr = Gallons × 8.33 × Desired Temp Rise ÷ Hours. Ensures rapid recovery during cold nighttime ambient temperature drops.
SQ FT
Filtration Surface Area
Calculated at 0.375 GPM/sq. ft. commercial design rate to minimize operating PSI, extend cartridge lifespan, and reduce backwashing.
